main technical feature necton 33fly

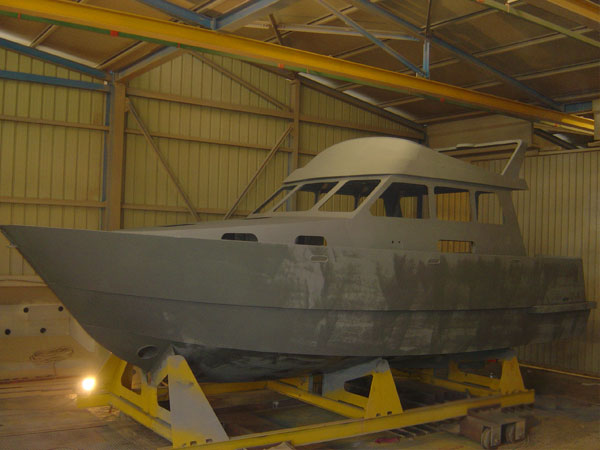

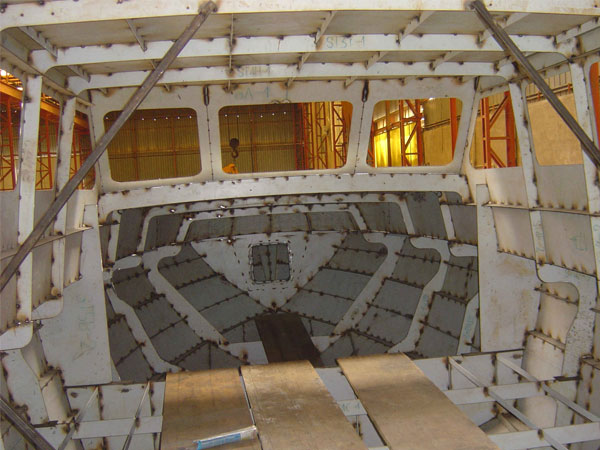

- Construction material: steel S275JR
- Hull: displacement

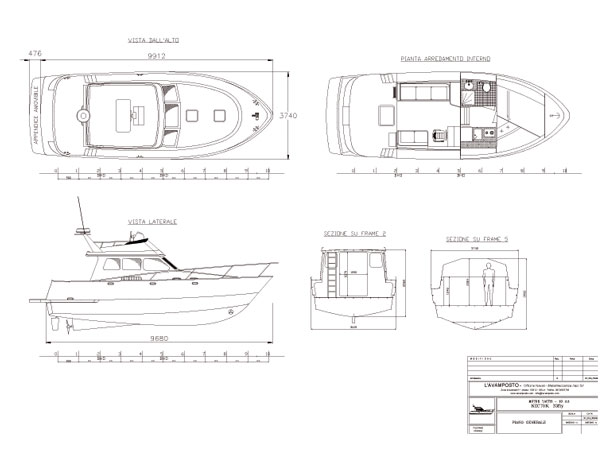

- Overall length: mt 10,40
- Hull length (Lh): mt 9,68
- Max. width: mt 3,74
- Max. draft: mt 1,14
- Displacement – approximate: Kg 11.800

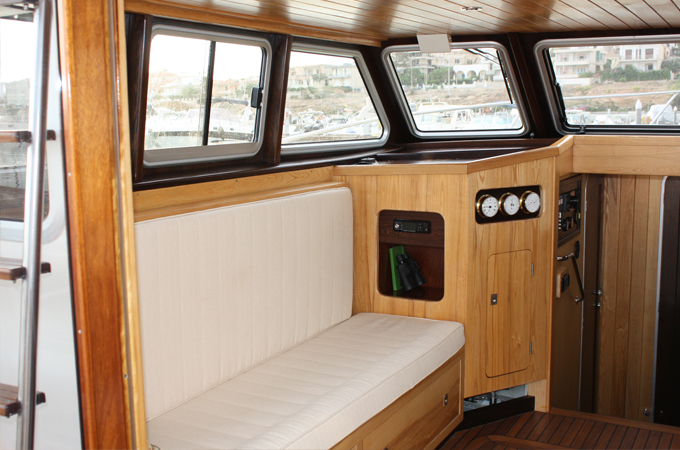

- Cabin height (central lounge): mt 1,95
- Cabin height (prow): mt 1,80

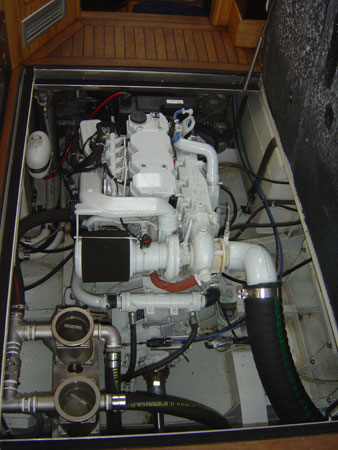

- MEngine standard nr 01: FPT – mod. N40 250 - 4 cylinders - 3920 cm³ - 170hp
- Reduction gear – Inverter nr 01: ZF model 63A
- Drive nr 01: axle line diam. 45mm
- Max. speed – approximate: knots 11
- Cruising speed – approximate: knots 9
- Approximate consumption: L/h 9
- Berths: nr. 12
- EC Approval: Giordano Institute - Category A
- Project: Filippone Marine - Cefalù (Italy)
|
